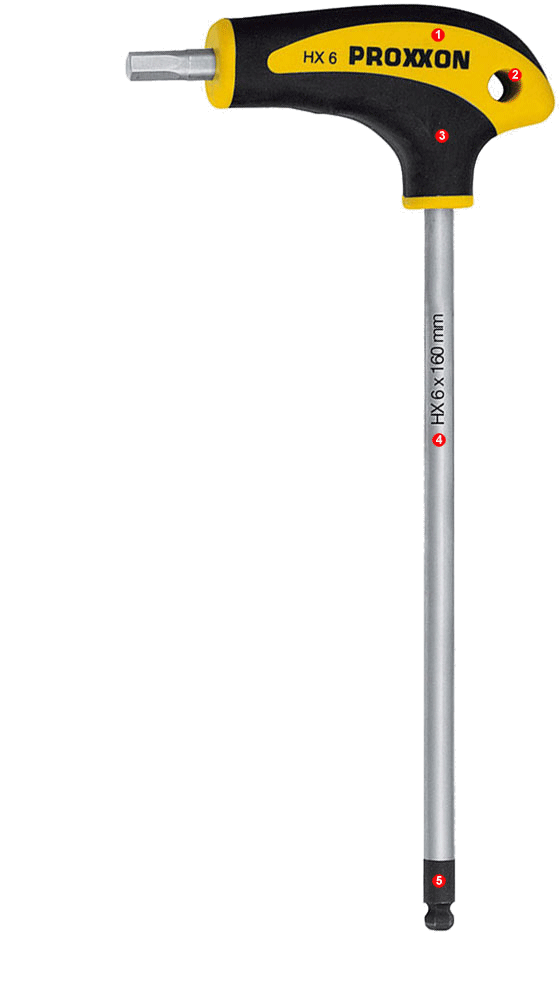

L-handle screwdrivers
If high torques are required for tightening or loosening screws, the L-handle screwdriver is the solution. The ergonomic and asymmetrical grip simplifies handling under continuous operation. Its two-component design with soft zones reduces pressure marks while at the same time allowing for optimum torque transfer. Easy-to-read sizes on shaft (laser marking) and handle.
Graded grip sizes correspond with the necessary torque of the respective blade size.
With transverse hole for hanging up.
Oil and acid-resistant non-stick special rubber handle.
Easy to read sizes through laser marking process on matte-chrome plated shafts of chrome silicon manganese molybdenum alloy special steel. Continuously hardened and stress-relieved with a balanced ratio of torsional rigidity and toughness.
Processed black tip for greatest precision for accepting screws. Also prevents tool from slipping.
- Graded grip sizes correspond with the necessary torque of the respective blade size.
- With transverse hole for hanging up.
- Oil and acid-resistant non-stick special rubber handle.
- Easy to read sizes through laser marking process on matte-chrome plated shafts of chrome silicon manganese molybdenum alloy special steel. Continuously hardened and stress-relieved
with a balanced ratio of torsional rigidity and toughness.
- Processed black tip for greatest precision for accepting screws.
Also prevents tool from slipping.
Difficult to access
Allen screws can be screwed
at a working angle of
up to 25° with HX Ball.
When using the screw
socket of the short blade,
the longer shank is used
as "lever" for extreme torque.

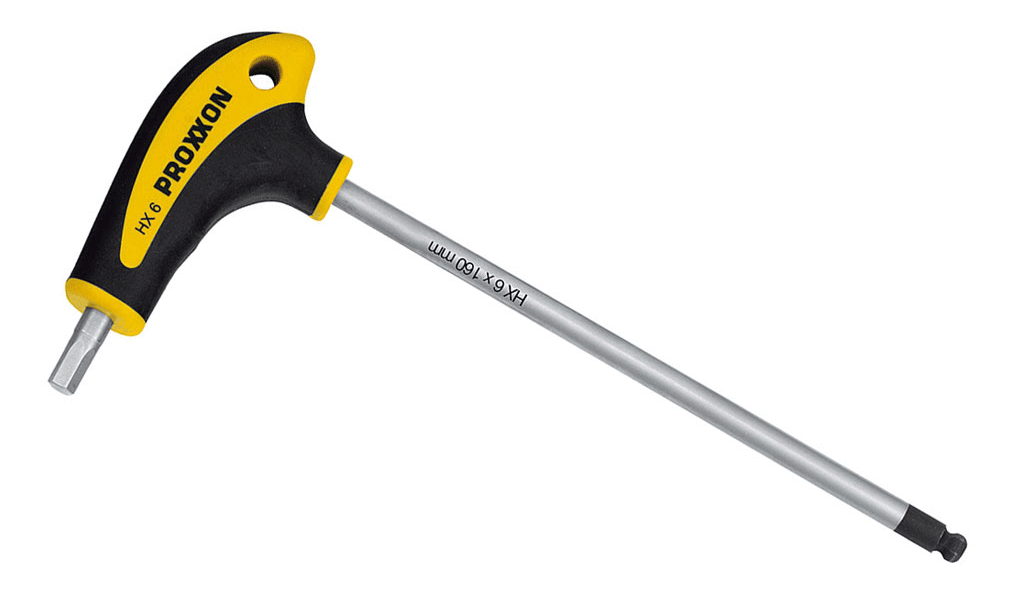

L-handle HX screwdrivers
Short blade with sturdy standard HX, long blade with HX Ball (ball head).
NO |
HX |
A mm |
B mm |
C mm |
| 22 402 |
2 |
110 |
15 |
55 |
| 22 404 |
2.5 |
110 |
15 |
55 |
| 22 406 |
3 |
110 |
15 |
55 |
| 22 408 |
4 |
110 |
15 |
55 |
| 22 410 |
5 |
160 |
20 |
75 |
| 22 412 |
6 |
160 |
20 |
75 |
| 22 414 |
7 |
160 |
20 |
75 |
| 22 416 |
8 |
200 |
20 |
75 |
| 22 418 |
10 |
215 |
20 |
100 |
L-handle TX screwdrivers
Short blade with sturdy standard TX, long blade with Tamper TX (with frontal hole).
NO |
TX |
A mm |
B mm |
C mm |
| 22 440 |
8 |
110 |
15 |
55 |
| 22 442 |
9 |
110 |
15 |
55 |
| 22 444 |
10 |
110 |
15 |
55 |
| 22 446 |
15 |
110 |
15 |
55 |
| 22 448 |
20 |
110 |
15 |
55 |
| 22 450 |
25 |
160 |
20 |
75 |
| 22 452 |
27 |
160 |
20 |
75 |
| 22 454 |
30 |
160 |
20 |
75 |
| 22 456 |
40 |
185 |
20 |
75 |
| 22 458 |
45 |
215 |
20 |
100 |
| 22 460 |
50 |
215 |
20 |
100 |
L-handle screwdriver sets
With versatile holder for the workshop. Clear specified sizes on the holder for neat storage of L-handle screwdrivers.
| NO | ||
| 22 650 |  |
8-piece L-handle HX set with holder |
| HX 2 - 2.5 - 3 - 4 - 5 - 6 - 8 - 10 | ||
| 22 652 |  |
10-piece L-handle TX set with holder |
| TX 8 - 10 - 15 - 20 - 25 - 27 - 30 - 40 - 45 - 50 |
