New intelligent tool selections enrich the INDUSTRIAL assortment for trade and industry.

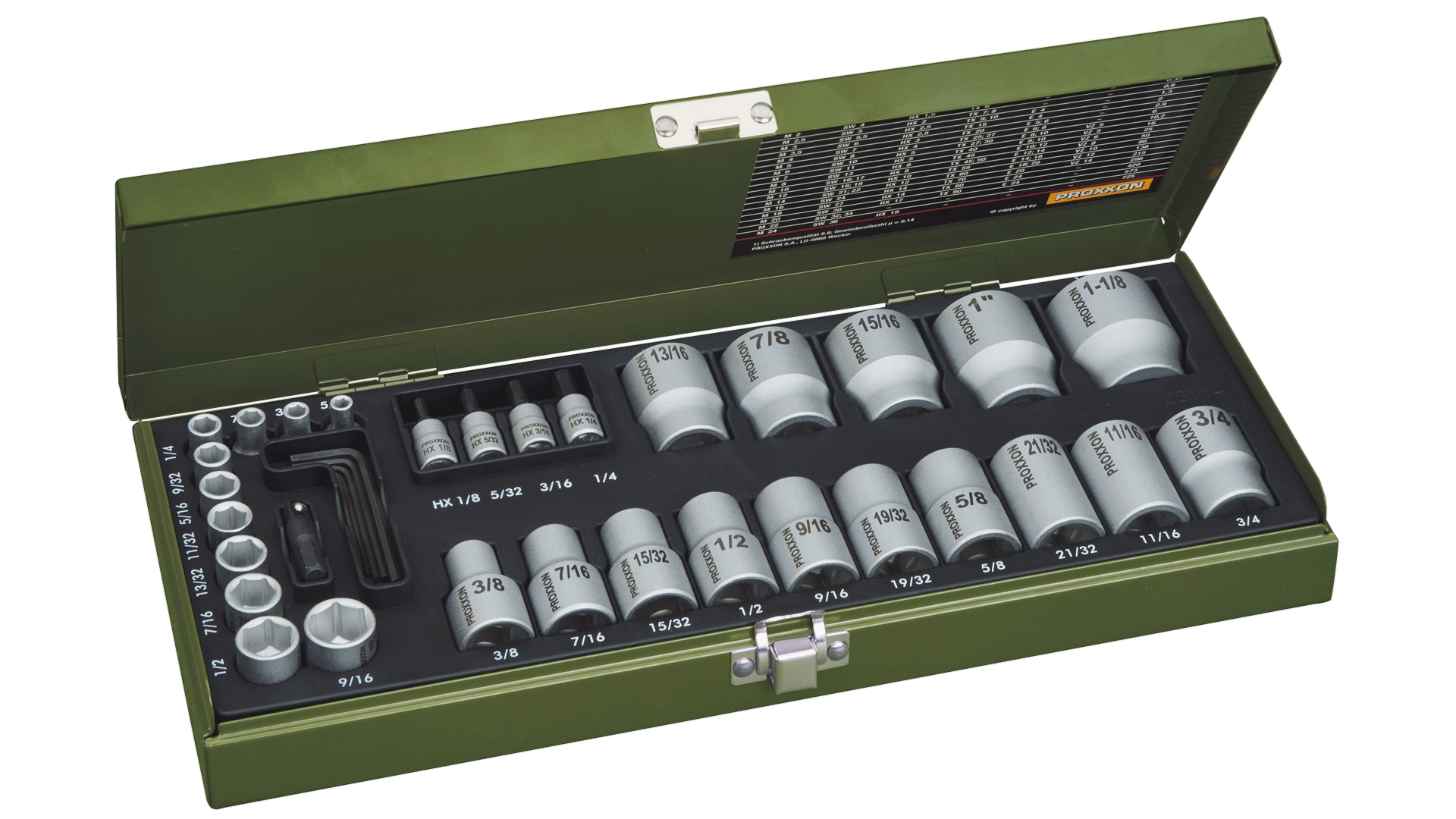

Set of sockets and bit sockets for inch sizes.

36-piece. For 1/4" (6.3mm) - and 1/2" (12.5mm) -drive. In sturdy, powder coated steel case.

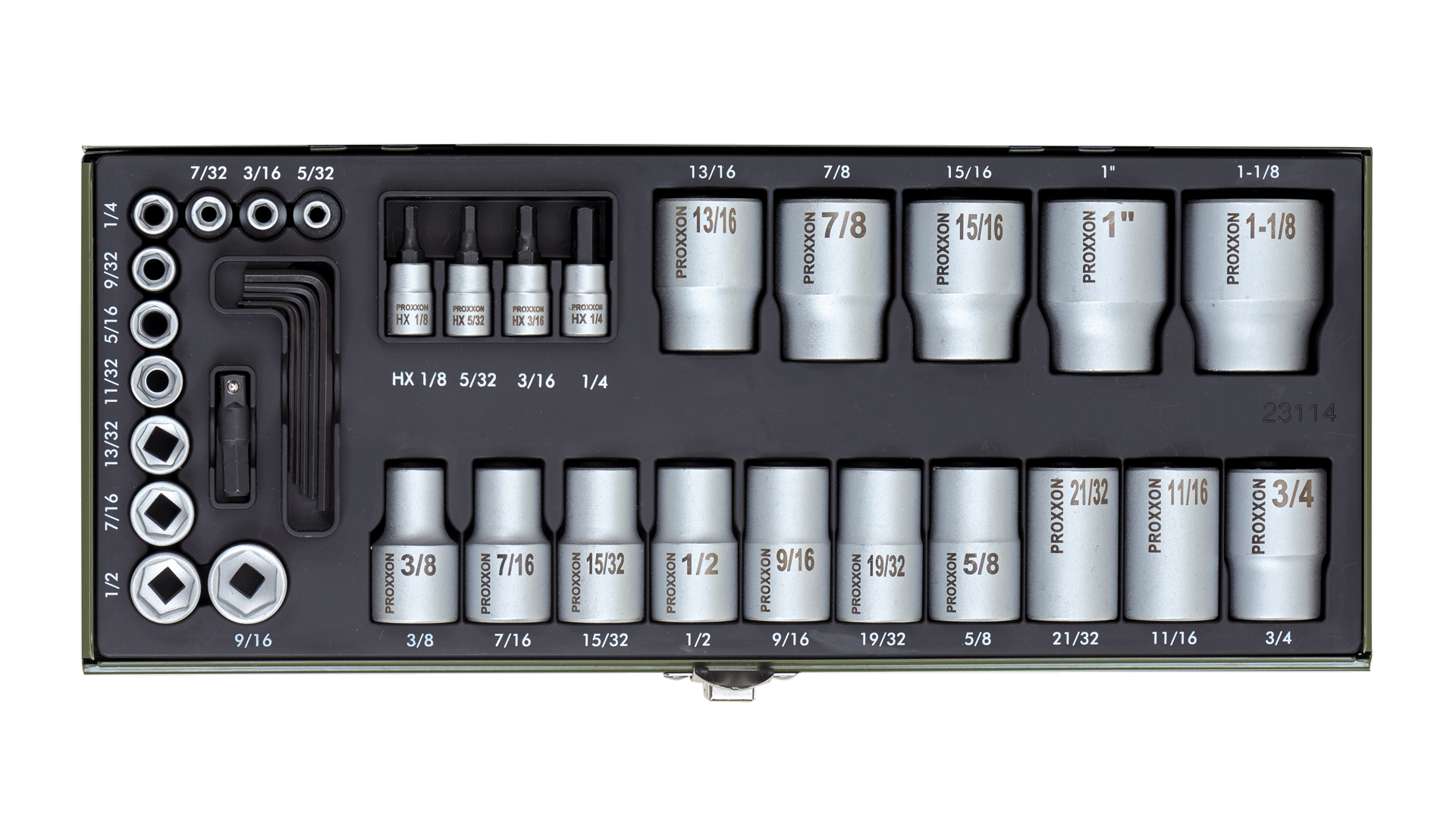

For 1/4" square drive (6.3mm): 5/32" - 3/16" - 7/32" - 1/4" - 9/32" - 5/16" - 11/32" - 13/32" - 7/16" - 1/2" - 9/16". Allen socket bits 1/8" - 5/32" - 3/16" - 1/4".

For 1/2" square drive (12.5mm): 3/8" - 7/16" - 15/32" - 1/2" - 9/16" - 19/32" - 5/8" - 21/32" - 11/16" - 3/4" - 13/16" - 7/8" - 15/16" - 1" - 1 1/8".

Additional five L-type keys 0,05" - 1/16" - 5/64" - 3/32" - 1/8". 1/4"-Adapter.

NO 23 114

A chart for threads from M 1.6 - M 24 with related tightening torque is durably fixed inside the lid.
For socket sets our test mechanics prefer steel cases: They are sturdy and preminently compact – a lot of tools, clearly arranged, requiring small space.

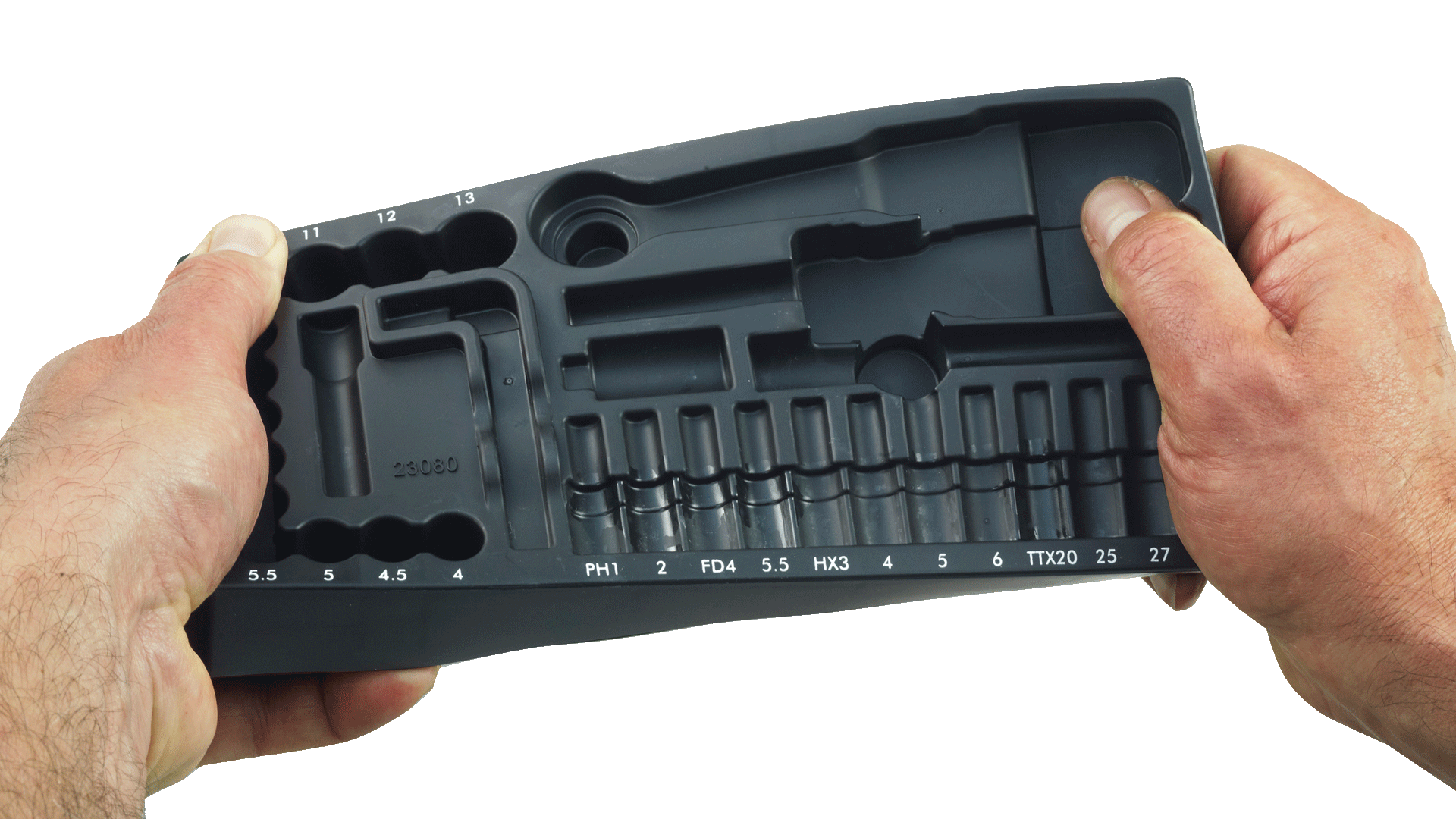

With distortion-free, indestructible trays of injected POLYPROPYLENE. Oil and acid resistant and easy to clean. With easy-to-read and durable marking of all socket sizes!

  1. A chart for threads from M 1.6 - M 24 with related tightening torque is durably fixed inside the lid.
  2. For socket sets our test mechanics prefer steel cases: They are sturdy and preminently compact – a lot of tools, clearly arranged, requiring small space.




Base of sockets made of CrV steel. Bits made of high-alloy special steel for superior wear resistance and torsional rigidity.


Optimum surface protection: Double nickel-plating and single matt-finished chrome-plating.





Quality at its best:
Highest quality, exceeds DIN/ISO requirements for hardness and maximum torque. Individual size tolerances are all well within the prescribed norms.

Manufactured using most modern production technology in the world's largest cold forging hand tool factory.

The ratchet - the key item:
Made from CrV steel in one single piece. Hardened and with perfect toothing: several of the 52 teeth engage simultaneously for transmitting extremely high torque. Quick release mechanism: releasing sockets at the push of the button. Optimum surface protection: twice nickel plated then chromed in matt finish. Non-detachable handle made from oil and acid-resistant TPR (thermoplastic rubber) with hanging hole.


The PROXXON driver system:
The driving force is applied to the flanks, not the corners. This ensures high power transmission without damaging the corners of the nut or bolt.



Screwdriver bits:
With CrV socket .
The drive bits are all an optimum combination of chrome-siliconmanganese-molybdenum steel .


All bits and accessories are forged using 31CrV steel. High carbon content to ensure consistent hardness. Deep, uniform forging is fully guaranteed on the hex. drive side to ensure that protruding studs do not present a problem. Thin-wall construction for better access while maintaining strength for heavy work. Lead-in chamfer allows socket to slide over nuts easily. Machined fits on drive square allow ratchet to arrest properly. Beginning with the 19mm size the outer diameter of the sockets is reduced on the drive square end for improved handling . Optimum surface protection: Double nickel-plating and single mattfinished chrome-plating.


Socket sizes easy to read due to laser marking!
