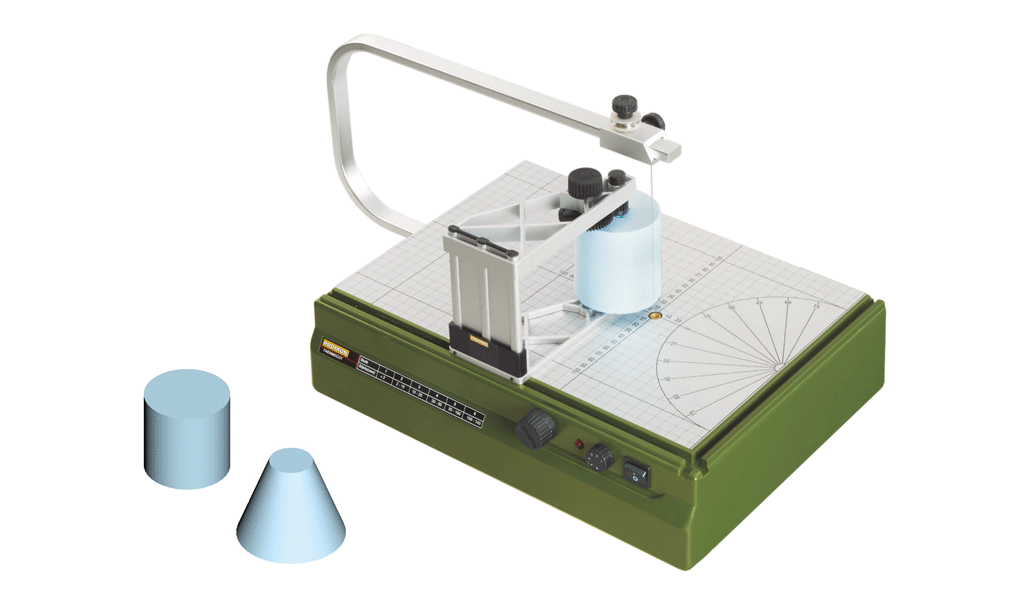

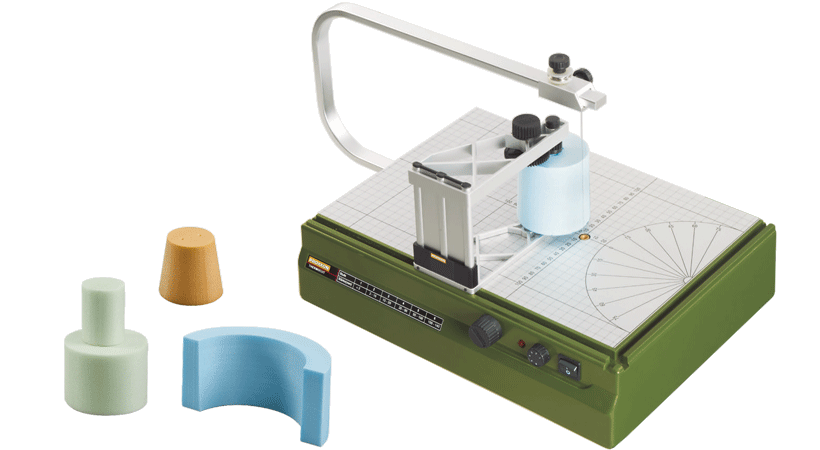

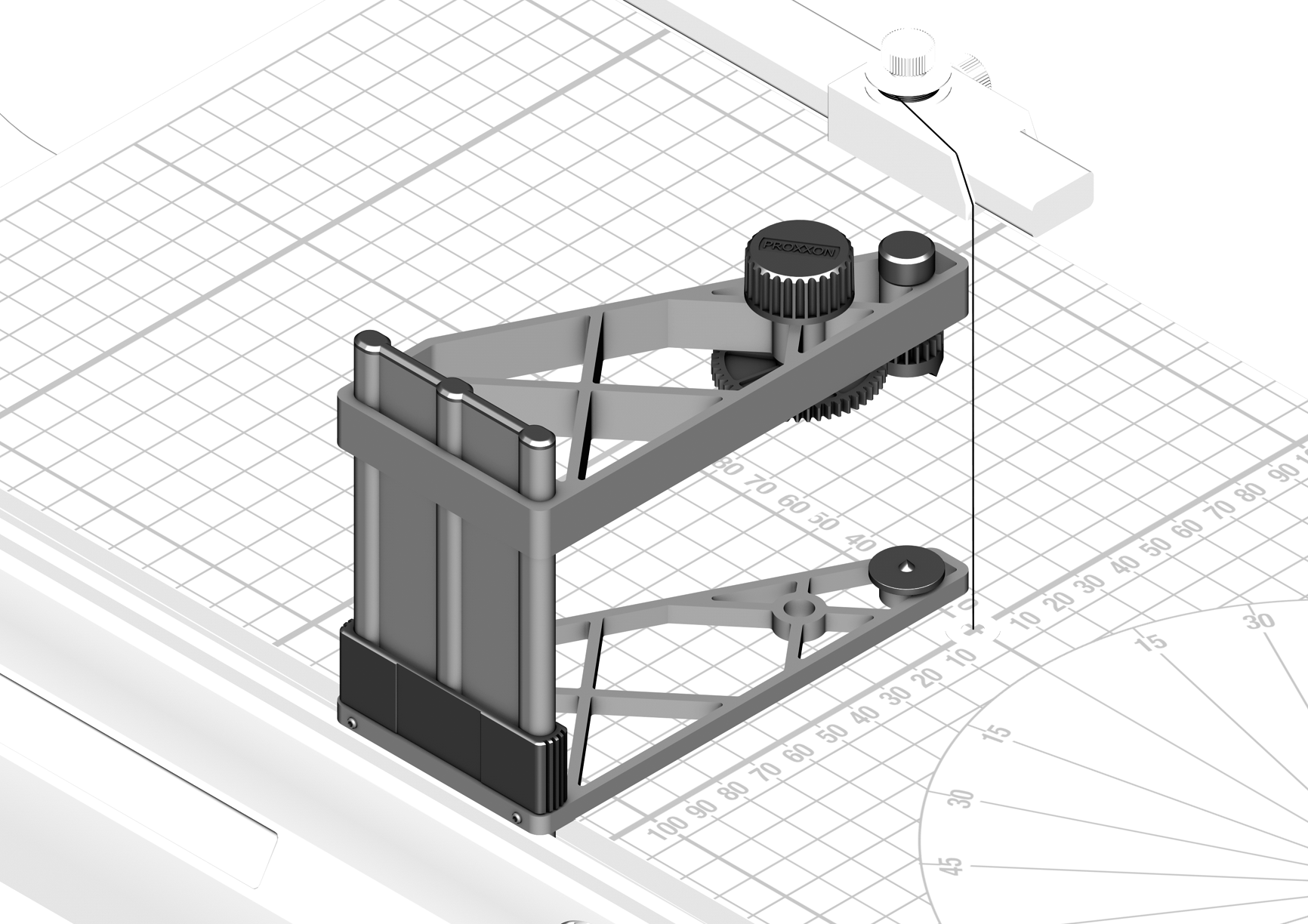

THERMOCUT Circle Cutter TKS 360
For super-precise circular cuts! Enables the precise production of cylinders and cut-off cones with high repeat accuracy.

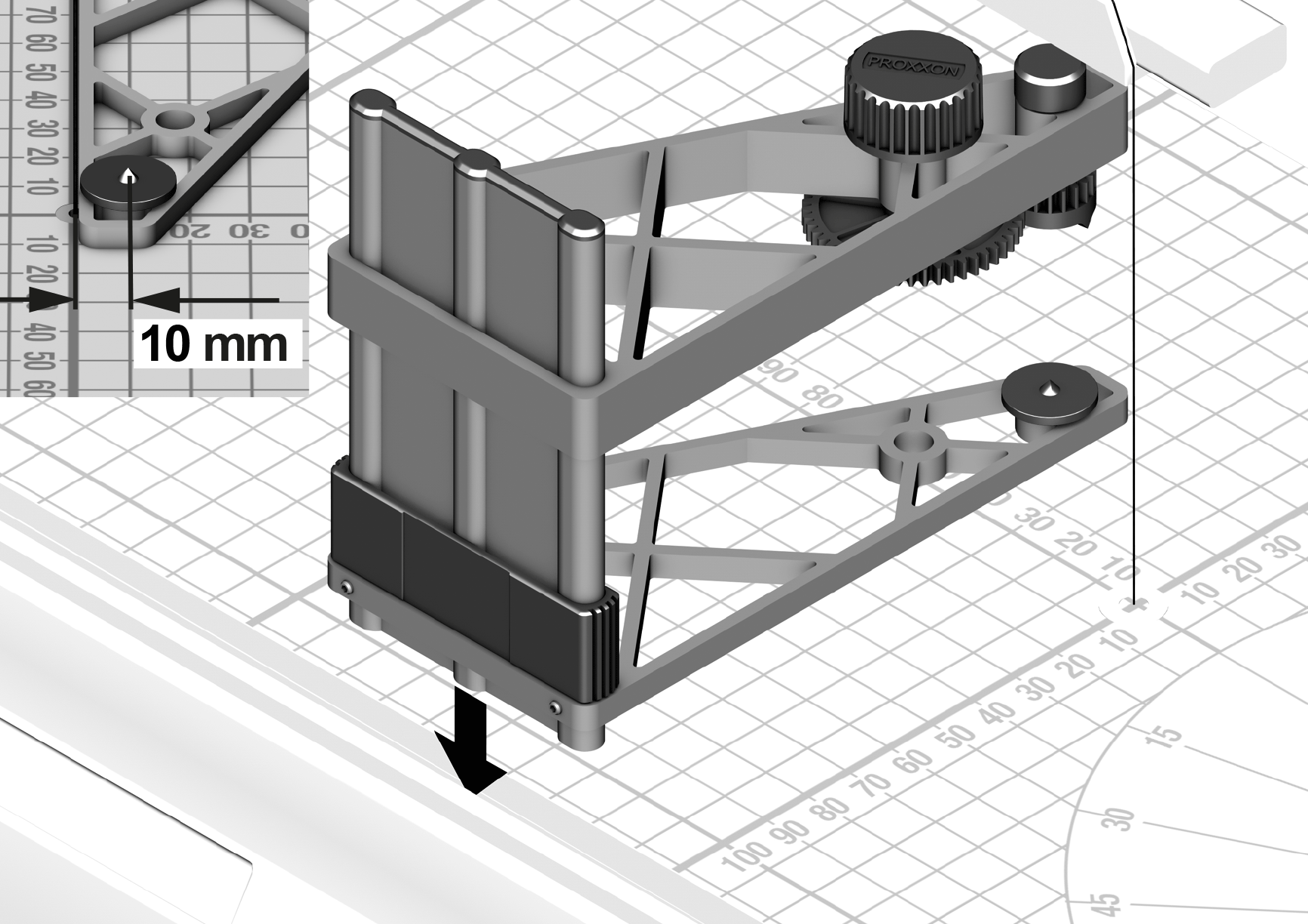

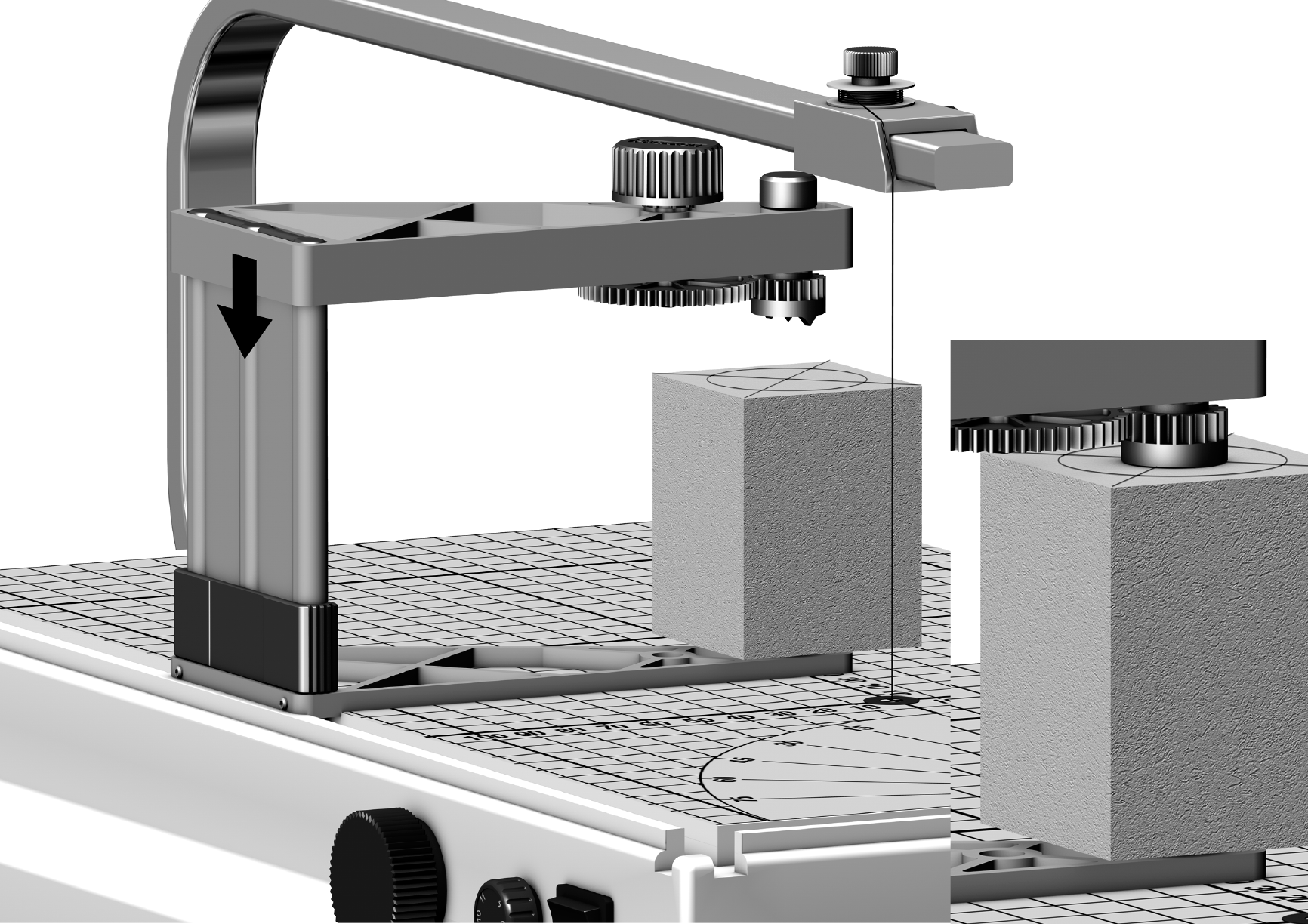

Solid construction made of aluminium (anodised). Stepless, tool-free height adjustment. Generous feed gear ratio (1:3) for comfortable cutting without having to reach round the rotary knob. Simple preselection of the desired workpiece diameter by moving the device in the table groove. Ergonomic handle for a secure grip during operation.
NO 27 076

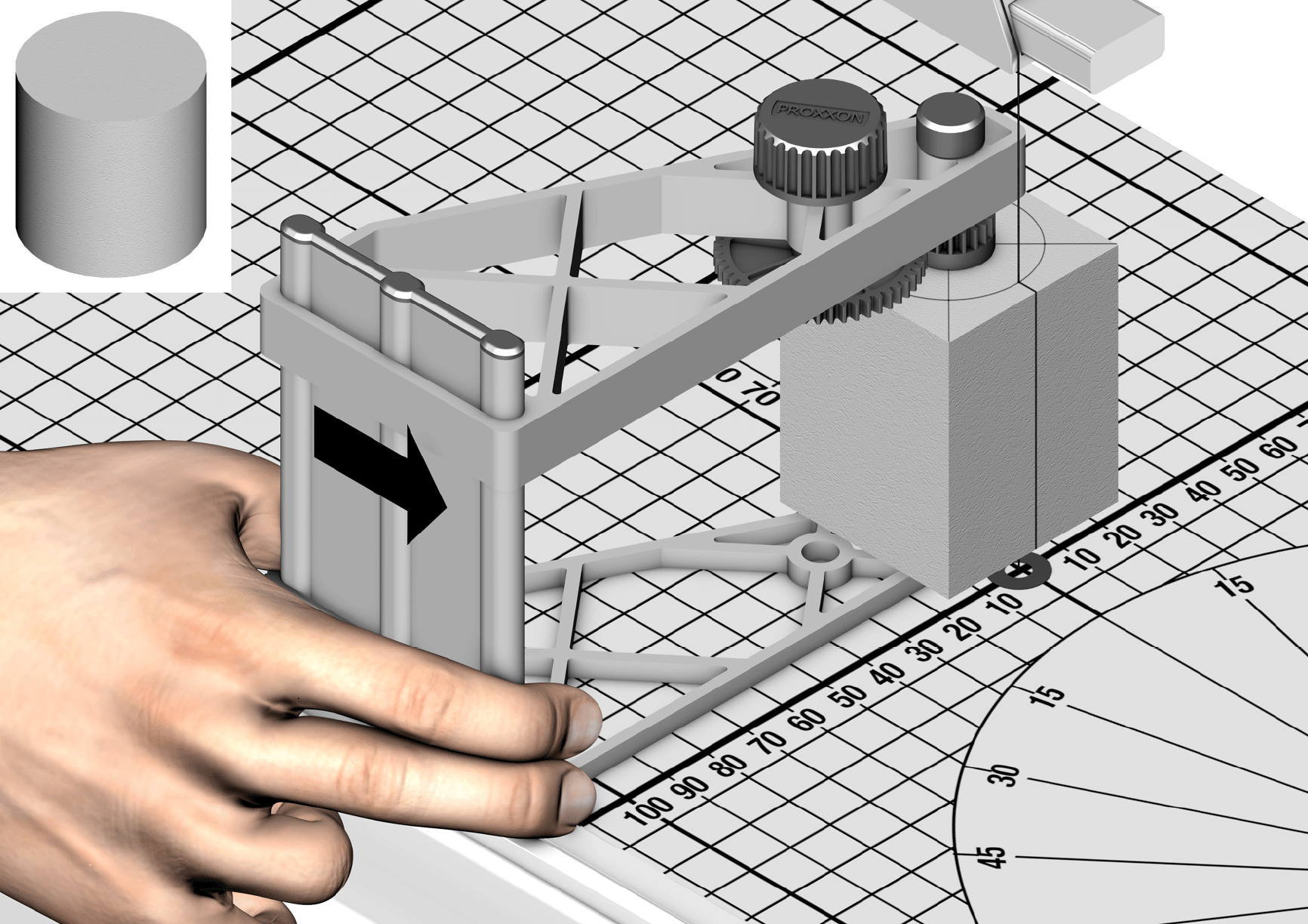

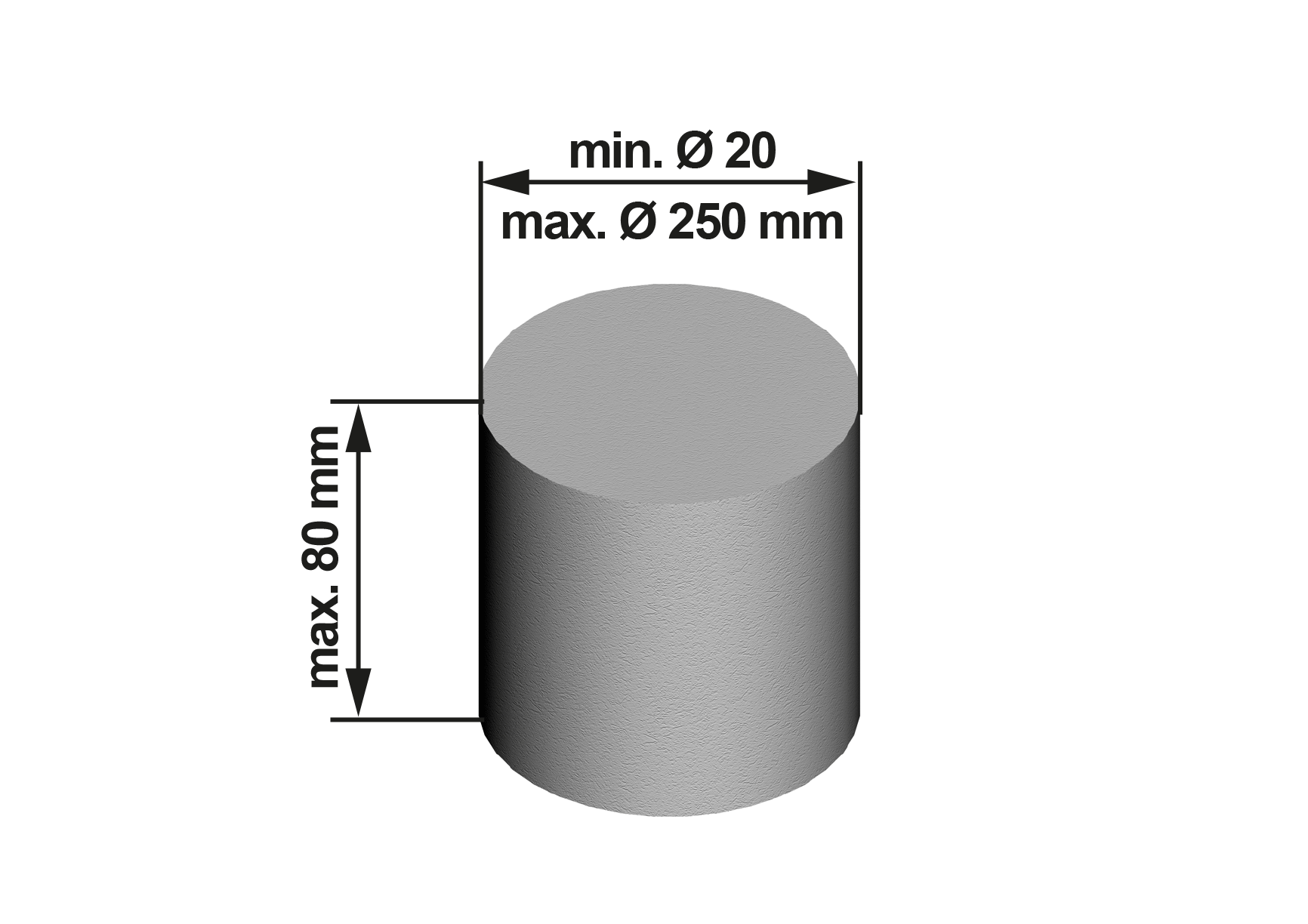

Possible dimensions cylinders:
| Ømin | = 20mm |
| Ømax | = 250mm |
| hmax | = 80mm |

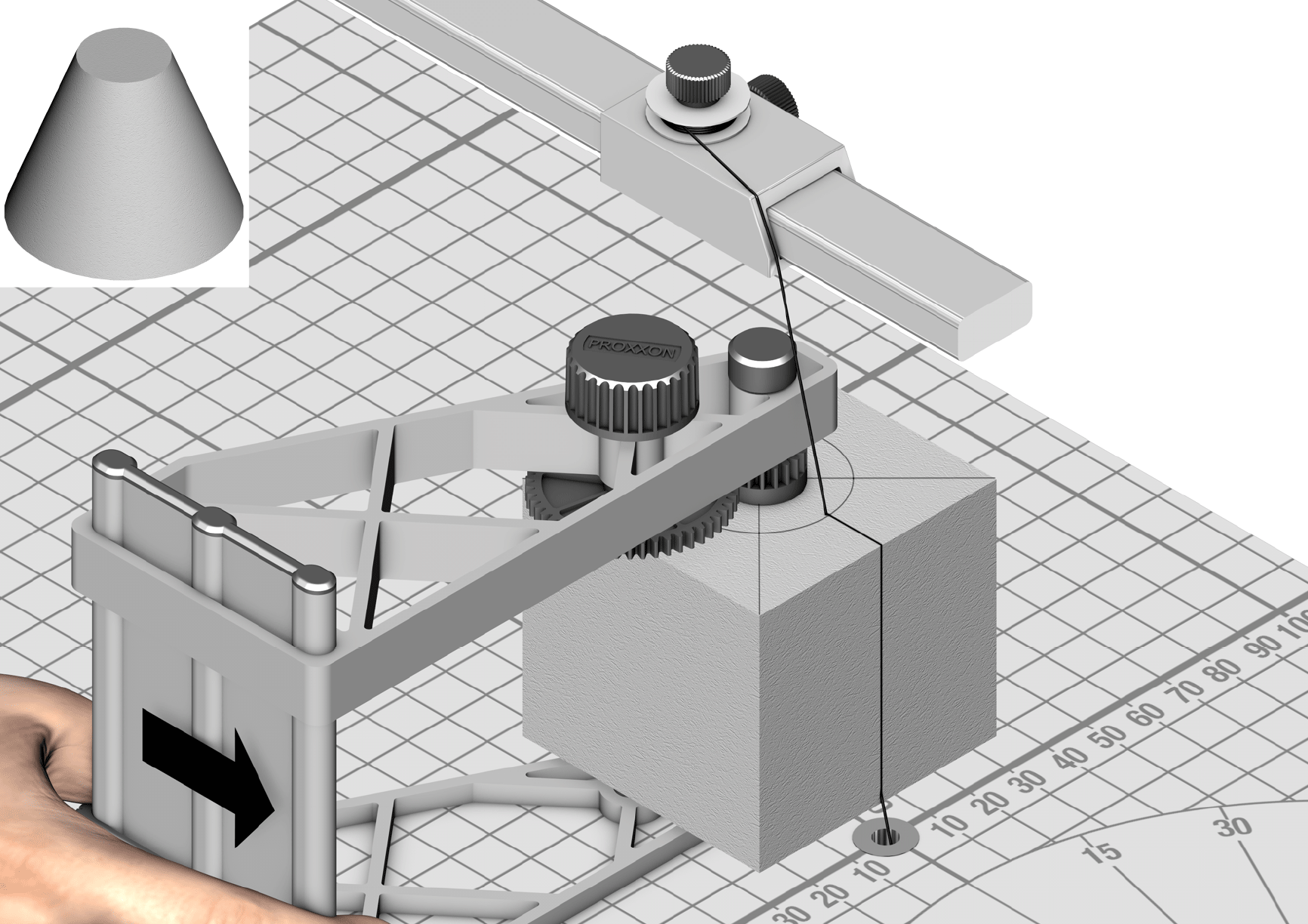

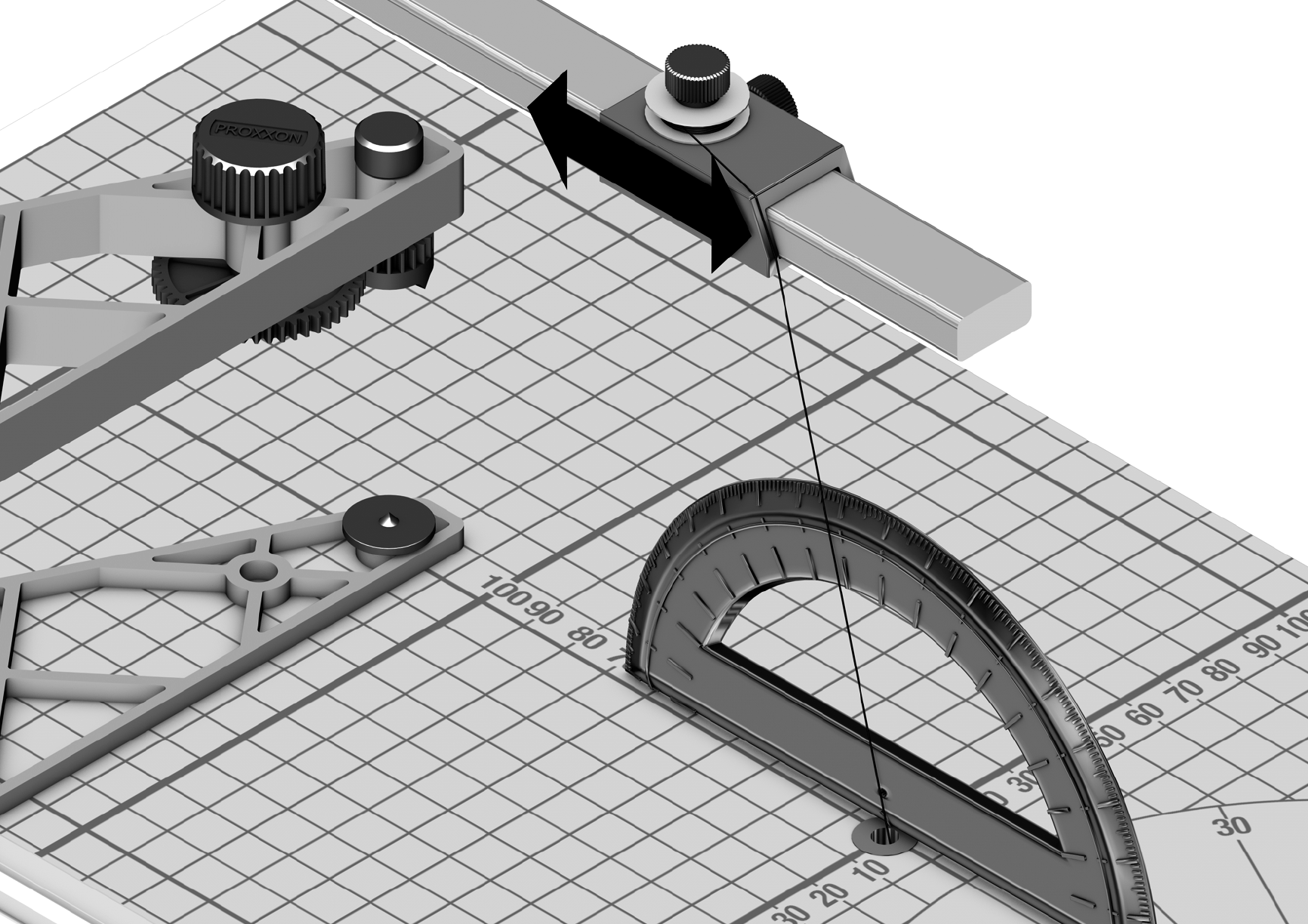

Possible dimensions frustums:
| Ømin | = 22mm |
| Ømax | = 250mm |
| hmax | = 80mm |
Note:
The THERMOCUT hot wire cutter is not included in the scope of delivery.

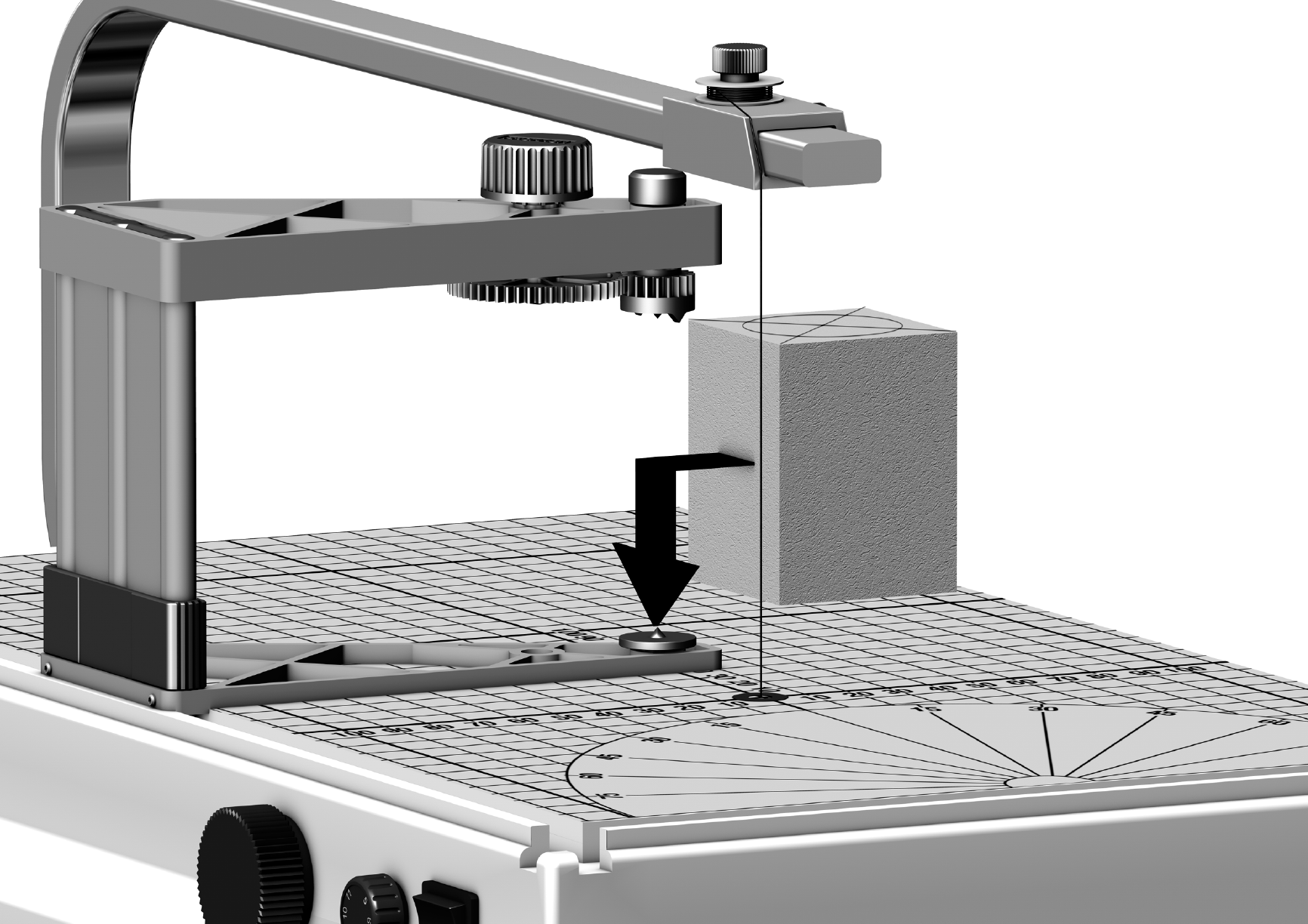

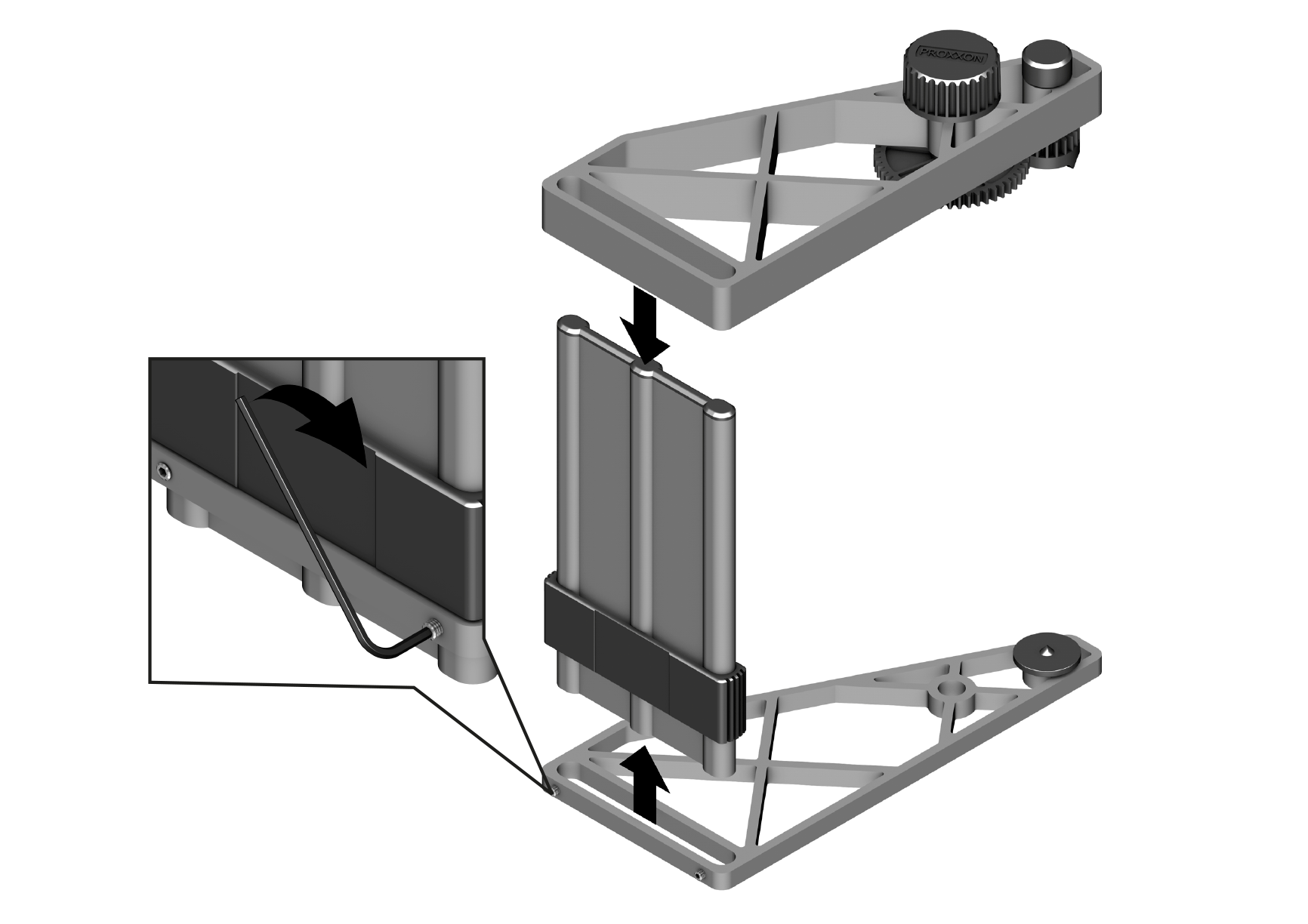

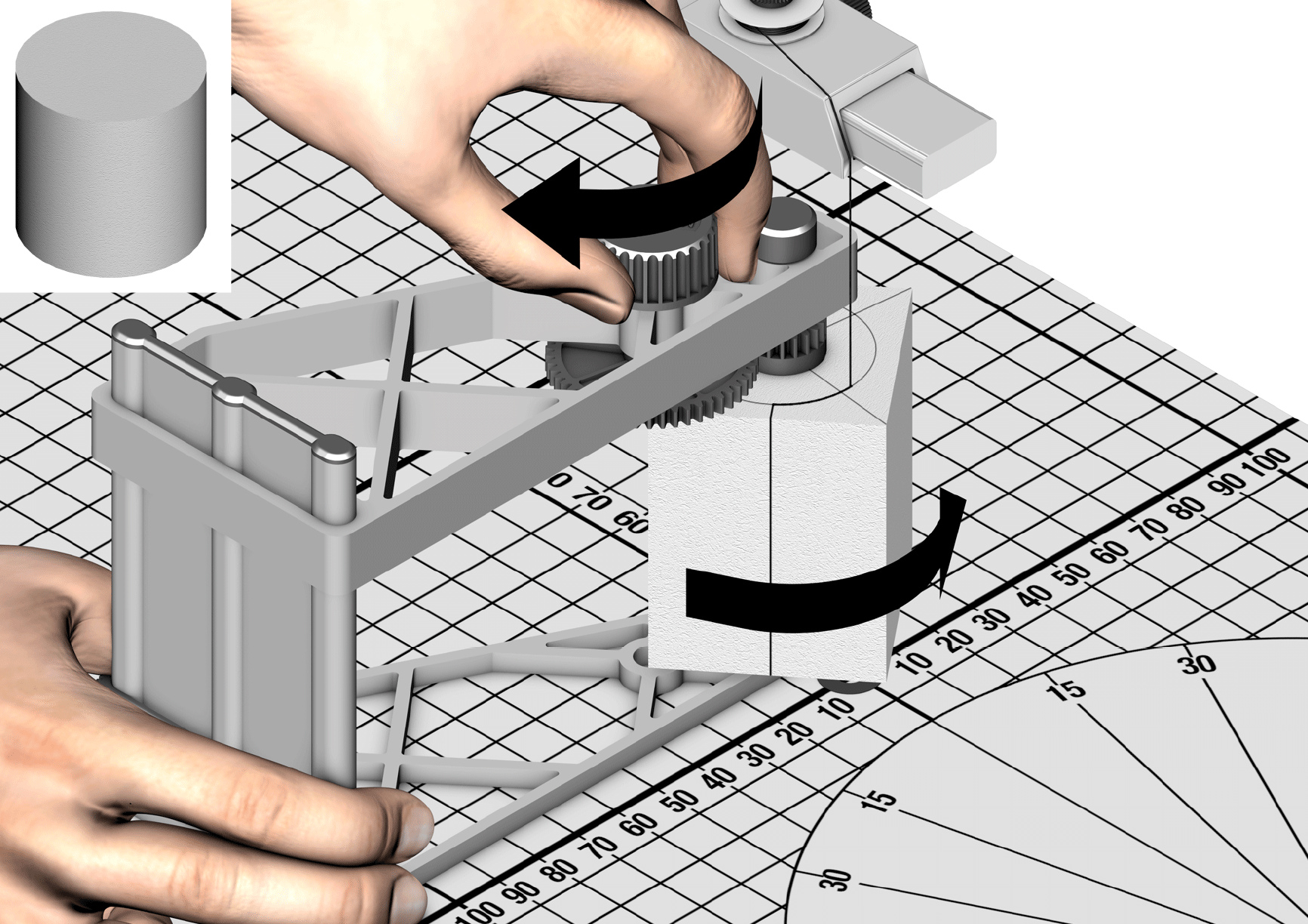

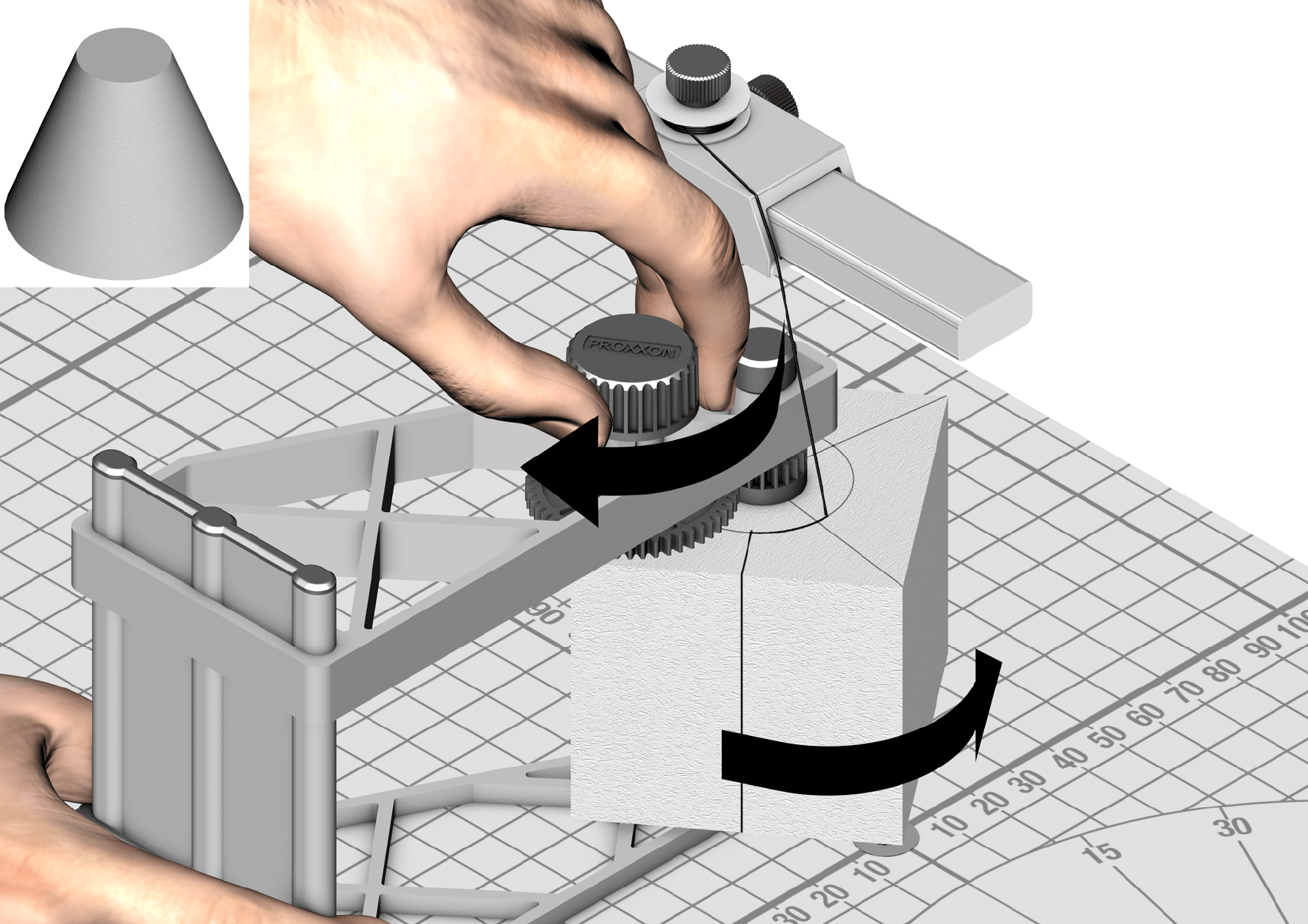

Commissioning, production of cylinders and frustums
