Cut off saw KG 50
Table moveable through 45°, allowing mitre cuts. Workpiece is fastened tightly and accurately by means of the integrated clamping device. Clamp jaws 27mm wide and maximum workpiece diameter 20mm. Depth of cut to 13mm. A special slot is provided to clamp HO model tracks. The fence accepts lengths up to 140mm. Five ceramic cutting discs 50 x 1.0 x 10mm are also included suitable for cutting steel, non-ferrous metals as well as wooden or plastic rods.
Technical Data:
230V. 85W. 50/60Hz. Peripheral speed 20m/sec. Weight approx. 1.5kg.
NO 27 150
Replacement cutting discs
Made of ceramic compound: 50% aluminium oxide and 50% silicon carbide. Suitable for cutting steel, non-ferrous metal as well as small wood and ceramic bars.
NO 28 152
Saw blades for cut off saw KG 50

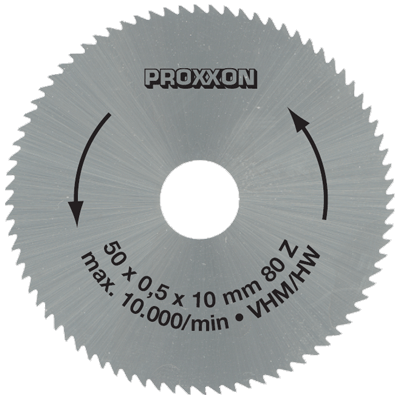

Solid carbide saw blade
50mm diameter (10mm bore). 0.6mm thick. Fine toothed: ideal for cutting fibreglass sheets up to 3mm, non-ferrous metals, duro-plastics and other 'difficult' materials.
NO 28 011

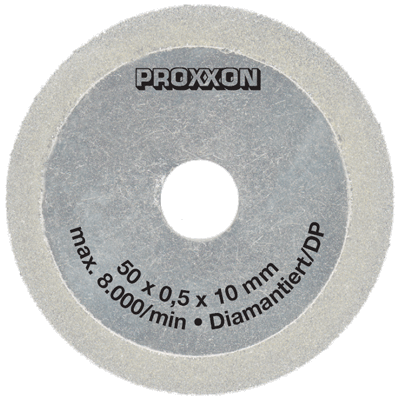

Diamond blade
50mm diameter (10mm bore). With 0.8mm layer of class 'D107' diamond for cutting ceramics, porcelain, tiles, stone as well as PC cards.
NO 28 012

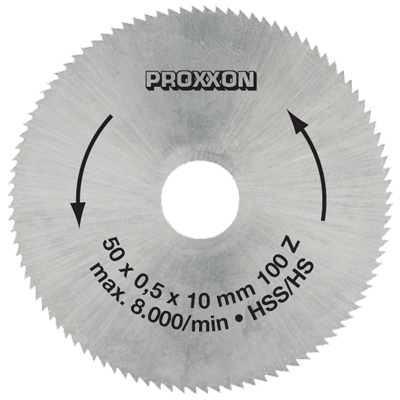

Saw blade made of high-alloy special steel (HSS)
50mm diameter (10mm bore), 0.6mm thick. Alloy holding a high proportion of tungsten, vanadium and molybdenum for an even structure, high hardness and long lifetime. Fine-toothed. For very fine cuts in non-ferrous metals (aluminium, brass, copper). Also suitable for cutting compound materials like PC cards, and sawing wood and plastics.
NO 28 020
Tungsten tipped saw blade
50mm Ø x 1.2mm (10mm bore). 20 teeth. For extremely clean cuts of balsa, plywood. Can also be used for cutting PC cards and POLYCARBONATE.
NO 28 017
