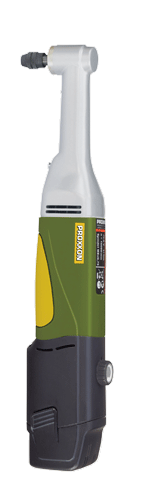

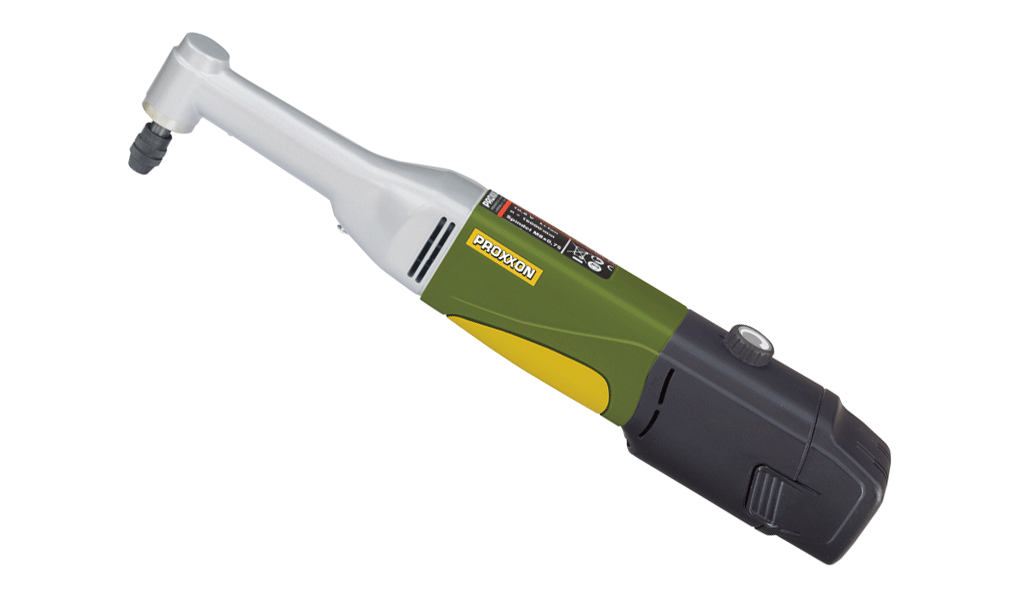

Cordless Long neck angle milling/drilling unit LWB/A
For drilling, milling and polishing in tough-to-reach areas. Ideal for tile cutting!
With a set of gears running on several ball bearings in a stable, die-cast aluminium housing head. Main housing is made of glass-fibre reinforced POLYAMIDE. With a special balanced, powerful, quiet and long-lasting DC motor. Infinitely variable rpm (full wave electronics). With MICROMOT hardened steel collets (1.0 - 1.5 - 2.0 - 2.4 - 3.0 and 3.2mm).
Storage case of high-grade polypropylene. Attractive design, very sturdy and large enough to put the machine back in the case after completing work, without having to "fumble". A label on the side identifies the contents.
Technical data:
10.8V. 5.000 – 16.000rpm. Length 320mm. Weight 800g.
NO 29 805
The LWB/A comes safely packed in a practical, attractive and super-sturdy plastic case made from high-quality PP. A product label on the side of the case details its contents.

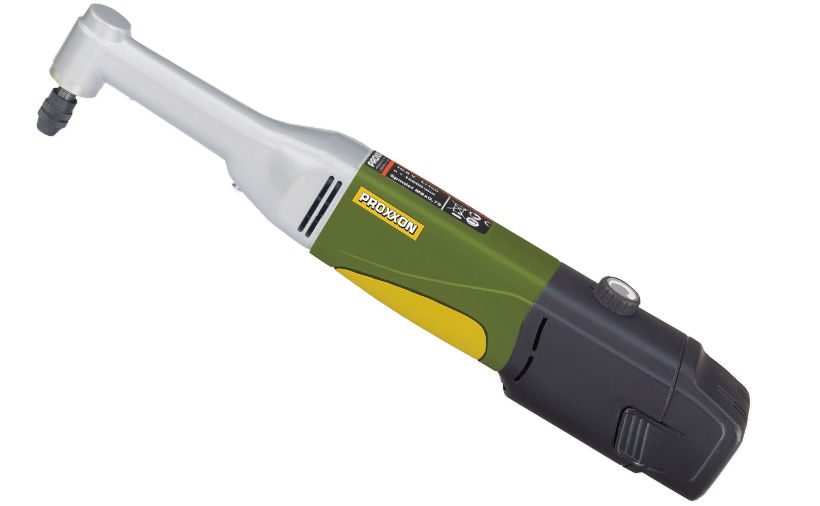

Cordless Long neck angle milling/drilling unit LWB/A, individually
As described above, with 6 MICROMOT steel collets. But without battery, rapid charger and without bits and cutters. Packed in a cardboard box.
NO 29 807
- High quality 10.8V lithium-ion battery with 2.5Ah for a performance comparable to the mains-powered counterpart.
- One battery charge allows for at least 30 minutes of use even at maximum power. No other cordless tool lasts longer in this class!
- Gear head of die-cast aluminium. Main housing of glass-fibre reinforced POLYAMIDE with soft component in grip area.
- With continuously variable speed control and special balanced DC motor: powerful, quiet and durable.
Practical:
The flat end cap of the battery enables the tools to stand upright as well.
Accessories for long neck angle milling/drilling units LWB/E, LWB/A and LWB/BL
Sanding & Grinding

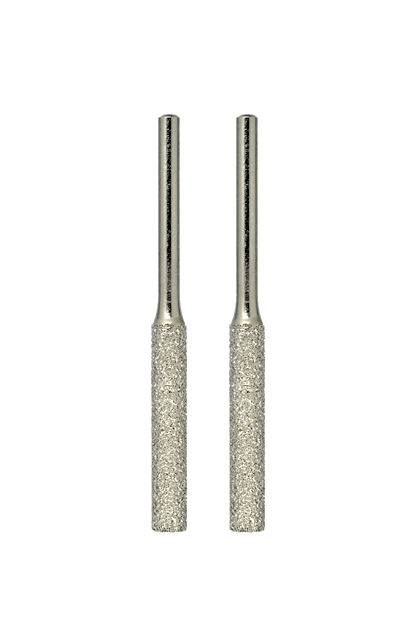

Diamond grinding bits
For creating radii in corners, e.g., of cutouts. Ø 5mm. Shaft 3.2 mm.
NO 28 2462 pieces
Diamond grinding bits in spherical shape
Tip diameter 4,4mm. With consistently even diamond dust coating. Bodies and shafts made from stainless steel. Used for grinding, engraving and chiselling steel (even chrome-cobalt alloy), glass, ceramics, porcelain and plastics. All shafts Ø 2.35mm.
NO 28 2262 pieces
Cutting

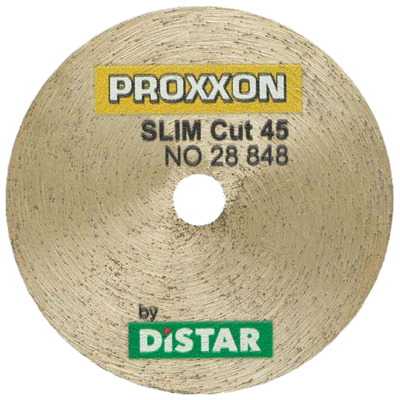

Diamond cutting disc SLIM Cut 45
Extremely thin, precise cuts. For sharp edges with almost no chipping. For porcelain stoneware, natural stone (granite, marble), ceramic materials. Thickness 0.6mm. Shaft 3.2mm. Ø 45mm.
NO 28 848
Diamond-coated cutting disc UNI Cut 45
Fast, thin, clean cuts. All-rounder. For porcelain stoneware, natural stone (granite, marble), ceramic materials, glass. With flat diamond coating (10 mm). Thickness 0.9mm. Shaft 3.2mm. Ø 45mm.
NO 28 849

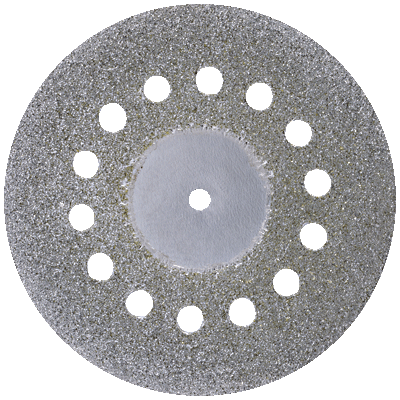

Diamond-coated cutting disc
For cutting, grinding and deburring. Same application as described on the left. Less heating up due to cooling holes. No burn marks! Thickness 0.6mm. Shaft Ø 2.35mm.
NO 28 846

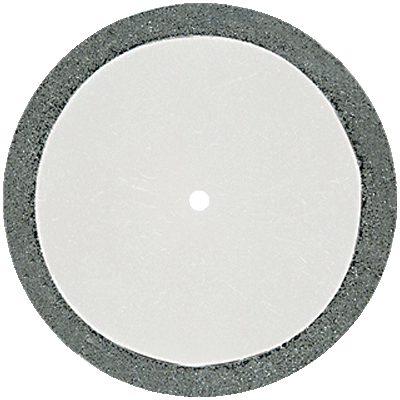

Diamond cutting disc
Only 0.6 thick. For cutting and sanding of porcelain, ceramics, glass fibre boards, plastic and non-ferrous metals. Shaft Ø 2.35mm.
NO 28 840Ø 20mm
NO 28 842Ø 38mm
Rasping

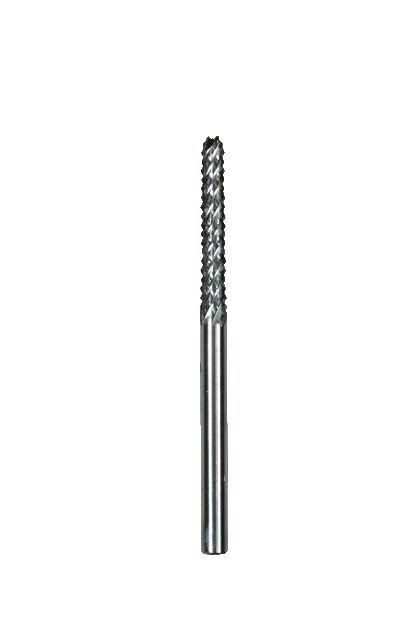

Rasp cutterBohren
Ball-shaped diamond-coated grinding bits
For drilling and machining of glass and types of stone reaching to granite. Recommended for use on drill presses with a speed of 2,000rpm with the addition of coolant. Shaft Ø 2.35mm.
NO 28 230Ø 1.2mm
NO 28 232Ø 2.2mm

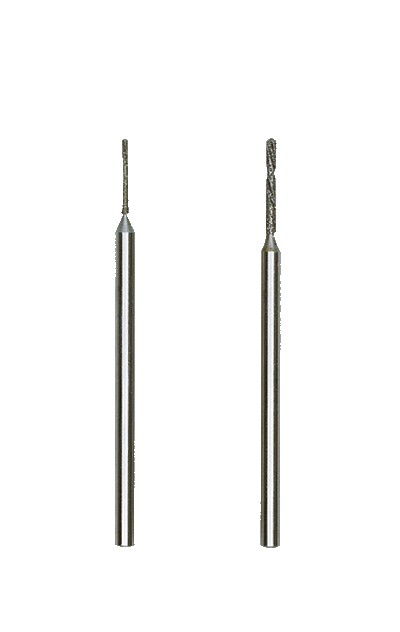

Diamond twist drills
For drilling holes in (semi) precious stones, etc. Shaft Ø 2.35mm.
NO 28 255Ø 0.8 and 1.2mm
