For milling/drilling unit LWB/A

---

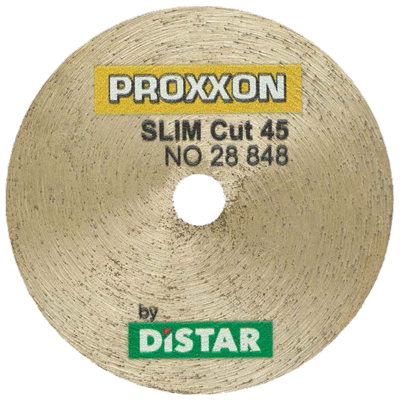

Diamond cutting disc SLIM Cut 45

Extremely thin, precise cuts. For sharp edges with almost no chipping. For porcelain stoneware, natural stone (granite, marble), ceramic materials. Thickness 0.6 mm. Shaft 3.2 mm. Ø 45 mm.

NO 28 848

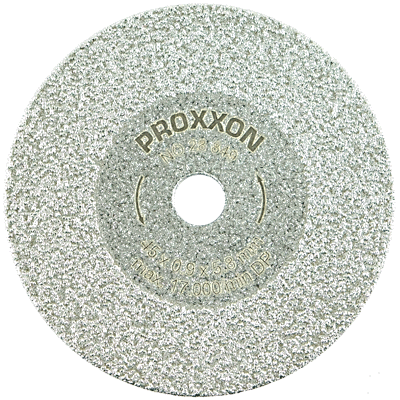

Diamond-coated cutting disc UNI Cut 45

Fast, thin, clean cuts. All-rounder. For porcelain stoneware, natural stone (granite, marble), ceramic materials, glass. With flat diamond coating (10 mm). Thickness 0.9 mm. Shaft 3.2 mm. Ø 45 mm.

NO 28 849

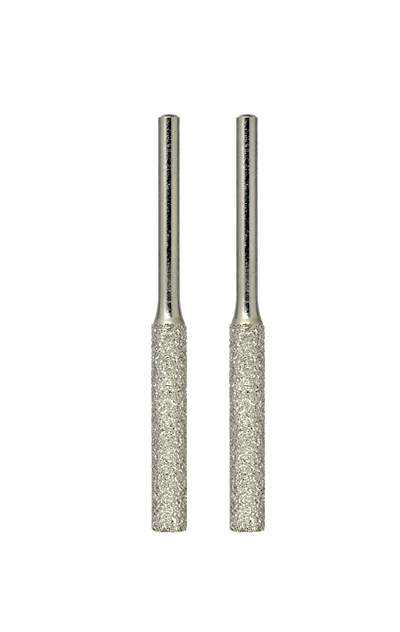

Diamond grinding bits

For creating radii in corners, e.g., of cutouts. Ø 5 mm. Shaft 3.2 mm. 2 pieces.

NO 28 246

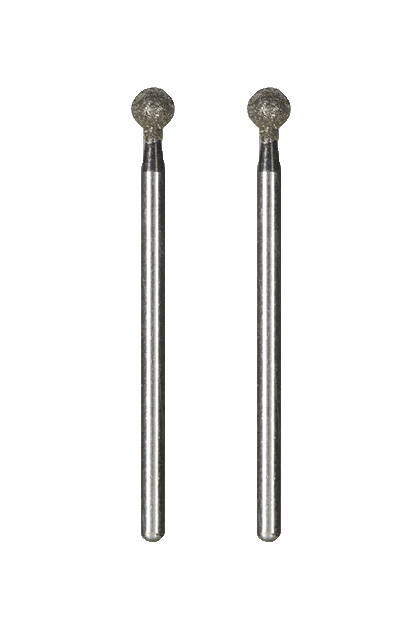

Diamond grinding bits in spherical shape

With consistently even diamond dust coating. Bodies and shafts made from stainless steel. Used for grinding, engraving and chiselling steel (even chrome-cobalt alloy), glass, ceramics, porcelain and plastics. Tip diameter 4.4 mm. Shaft 2.35 mm. 2 pieces.

NO 28 226

For angle grinders LHW/E and LHW/A

---

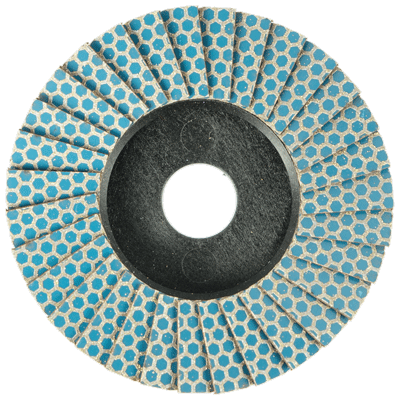

Diamond-coated flap disc

Straight edge for clean corner-cuts. High stock removal in granite, marble, stoneware and other ceramic materials. Ø 50 mm. 2 pieces.

NO 28 166Grit 60
NO 28 167Grit 120
NO 28 168Grit 200

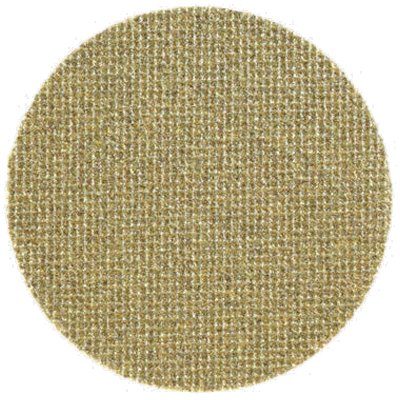

Diamond sanding discs

For chamfering and sanding of cutting edges in granite, marble, stoneware and ceramic Grit materials. Self-adhesive type. Ø 50 mm. 6 pieces.

NO 28 675Grit 120
NO 28 676Grit 200
NO 28 677Grit 400

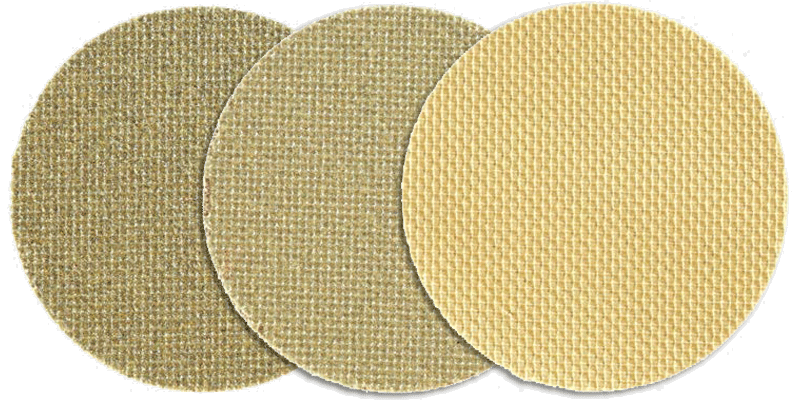

Set of diamond sanding discs

One disc of each grit of 60 - 120 - 200 - 400 - 800 - 1500 - 3000. Including one foam backing pad.

NO 28 679

Diamond-coated cutting disc UNI Cut 50

Fast, thin, clean cuts. All-rounder. For porcelain stoneware, natural stone (granite, marble), ceramic materials, glass. With surface diamond coating (10mm). Thickness 0.9mm.

NO 28 156
