SlimLine spanners. Hands-on tools. CrV steel drop forged.

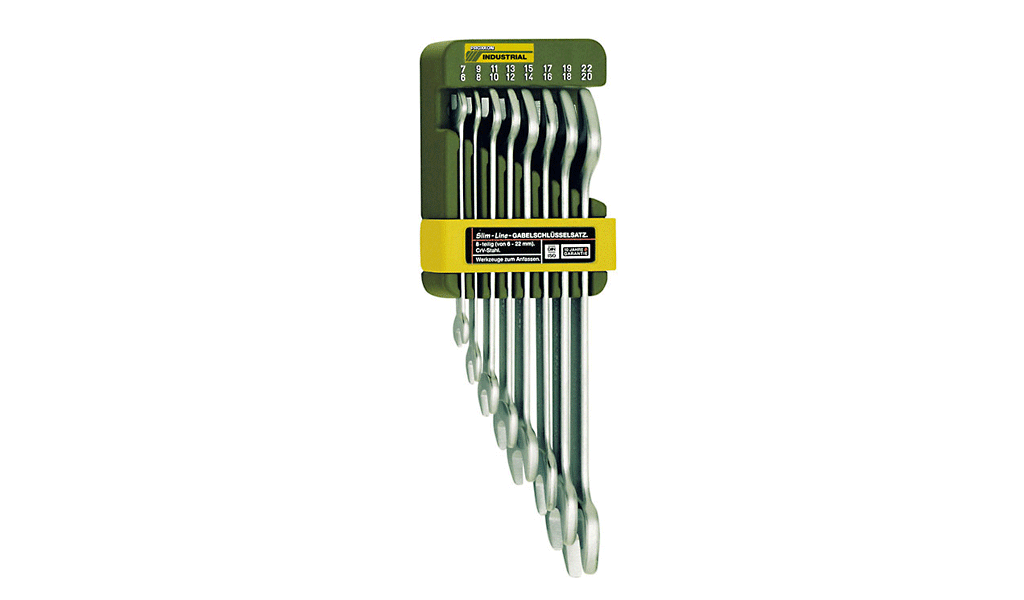

8-piece SlimLine-open-end spanner set, including holder. To DIN 3110 and ISO 3318.


Carefully hardened and plated. With clearly readable sizes.

Includes 6 x 7, 8 x 9, 10 x 11, 12 x 13, 14 x 15, 16 x 17, 18 x 19 and 20 x 22mm. Supplied with a plastic holder with slot for each spanner and holes for attaching to a wall. All spanners clearly labelled to make them easy to find.

NO 23 800set

  • Optimal surface protection by means of double nickel-plating and single chrome-plating. With easy to hold, smooth finish.

  • With durable laser inscribed and clearly readable sizes in mm.

  • Polished heads: slim and thin walled. Torque characteristics still exceed DIN/ISO requirements.

  • Dimensional tolerances are better than those required by DIN/ISO. Each piece is calibrated and checked.


Quality at its best:
Highest quality, exceeds DIN/ISO requirements for hardness and maximum torque. Individual size tolerances are all well within the prescribed norms.





SlimLine-open-end spanners, individually

NO
S1 x S2
B1
B2
L
H
23 828
5 x 5.5mm
13
14
111
3.0
23 830
6 x 7mm
16
18
123
3.4
23 832
8 x 9mm
20
22
140
3.5
23 834
10 x 11mm
24
26
157
4.5
23 836
12 x 13mm
28
29
173
4.7
23 838
10 x 13mm
24
29
174
4.7
23 840
14 x 15mm
32
34
190
5.5
23 842
16 x 17mm
36
38
205
6.0
23 846
18 x 19mm
38
42
220
6.5
23 848
17 x 19mm
38
42
220
6.5
23 850
20 x 22mm
43
46
235
7.5
23 852
21 x 23mm
45
48
248
7.5
23 856
24 x 27mm
49
55
268
8.5
23 860
30 x 32mm
59
64
302
9.5
23 864
34 x 36mm
65
79
320
10.0
23 866
41 x 46mm
86
95
415
15.0
