A small, high accuracy machining system to mill, drill and bore.

MICRO Mill FF 230

The MICRO Mill FF 230 is a small, accurate milling system used to mill, drill and countersink steel, cast iron, aluminum, brass and plastic. The headstock swivels through 360°, indicated on a scale. Height is adjustable. One revolution equals 1/32" (1mm) travel, 1 division equals .002" (0,05mm). The quill and headstock may be locked in position, which is essential when milling. The powerful permanent magnet motor drives via a poly-v-belt, yielding high torques, especially at lower speeds.

The machine comes with three collets of 15/64", 5/16" and 25/64" (6, 8 and 10mm). The solid table has a size of 10 5/8" x 3 5/32" (270 x 80mm) and is T-slotted to 15/32" x 15/64" x 13/64" (the MICROMOT norm of 12 x 6 x 5mm).

Technical data:
Speeds 280 - 550 - 870 - 1,200 - 1,500 - 2,200rpm
Table Size 10 5/8" x 3 5/32" (270 x 80mm)
Column Size Ø 1 3/8" x 15 3/4" long (35 x 400mm)
X-Y Travel 6 11/16" x 2 9/16" (170mm x 65mm)
Overall Height 20" (500mm)
Volts 110 - 120V AC, 60Hz
Weight 41 lb. (17kg)

NO 34 108

See us on YouTube!



California Residents Prop 65 Information


WARNING:
This product can expose you to chemicals including lead, which are known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov.



  1. Hand wheel serves as height adjustment.
  2. Poly-V drive system offers 6 speeds between 280 and 2,500rpm.
  3. The clamps and work piece shown are not included.
  4. Hand wheels with zero adjustable scale, 1 rev = 1/16" (1.5mm), 1 division = .002" (0.05mm).


Important:
For best results when milling, it is recommended to lock the headstock. This is easily done via the FF 230's lock levers.

Note:
Fine feed available separately as NO 24 140.

Useful accessories for MICRO Mill FF 230

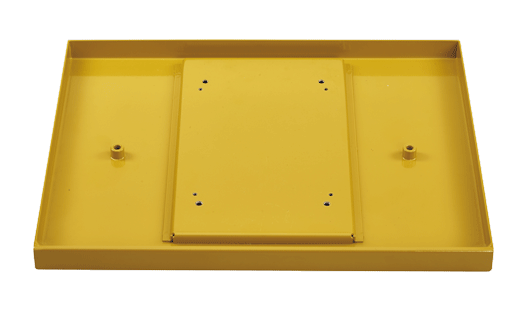

Splash guard and chip collecting tray for PROXXON milling machines



Made of 1/16" (1.5mm) thick sheet steel, powder-coated. Secure stand due to drill holes for fastening to a work surface (the use of steel sleeves keeps the tray tightly sealed). 27 1/2" x 16/12" x 1 37/64" (L 700mm, W 420mm, H 40mm).

NO 24 322




Universal dividing attachment UT 250


Worm drive for divisions through 360°. Feed adjustment by handwheel with graduated, zero-adjustable dial (1 revolution = 10°). Unit may be fixed horizontally or vertically. For compound tables with distances between T-slots of 45 - 60mm. The flange of the dividing attachment is the same size as that of the main spindle of the PD 250/E lathe, thus 3 jaw chuck (NO 24 034) and 4 jaw chuck (NO 24 036) may be mounted. Incl. faceplate Ø100mm and step clamp set of steel: Two each step blocks and clamps. With matching slot nuts, threaded rods and nuts. Packed in a wooden box.

NO 24 046




Fine Feed for Mill/Drill Head PF 230 and MICRO Milling Machine FF 230


Easily installed. The feed may now be used via the height feed (vertical) or the fine feed in the tilted position. One revolution is equivalent to 1/16" (1.5mm) spindle travel, with 1 division = .002" (0.05mm). The graduated scale can be reset to zero.

NO 24 140




Five Piece Collet Set for PF 230 and FF 230


Includes 1 each collet for round stock 3/32", 7/64", 1/8", 5/32" and 13/64" (2.4 - 3.0 - 3.2 - 4.0 and 5.0mm). Supplied in a wooden box and lid.

NO 24 144





Drill Chuck


German industrial drill chuck for MICRO Mill PF 230 and FF 230 with 13/32" (10mm) capacity and 13/32" (10mm) arbor to fit the 10mm collet.

NO 24 110




Step Clamp Set


Made of steel. Complete with 2 step blocks, 2 clamps, 2 nuts and 2 T-slot nuts for MICROMOT standard (29/64" x 7/16" x 5/32" / 11.5 x 11 x 4mm). For use with the lathe systems PD 230/E, KT 150 and MF 70

NO 24 256




Step Clamp Set


Consists of 2 step blocks and 2 clamps, 2 nuts, 2 T-slot nuts. Secures objects to approx. 1 3/8" (35 mm) high. May be used with PD 230/E and FF 230. Supplied in wooden box.

NO 24 257

Milling Cutter Set 5/64" - 13/64" (2 - 5mm)


HSS, all with 15/64" (6mm) shank. Cutters of Ø 5/64", 7/64", 5/32" and 13/64" (2, 3, 4 and 5mm). Double fluted. Supplied in wooden box.

NO 24 610




Milling Cutter Set 15/64" - 13/32" (6 - 10mm)


HSS, 4 cutters Ø 15/64", 9/32", 5/16" and 13/32" (6, 7, 8 and 10mm). Four flute design. Supplied in wooden box.

NO 24 620




Three Piece Center Drill Set


HSS, 60°. Complete set with sizes of 2, 2.5 and 3.15mm (5/64", 3/32", 1/8"). Made from high-quality Cobalt HSS, pre-ground. Packaged in a wooden box.

NO 24 630




Precision Machine Vice


Milled in steel. Can be used on its side and back. Width of jaws 2 3/8" (60mm), clamping capacity 1 2/3" (42mm). Complete with mounting bolts. Packed in a wooden box.

NO 24 255




Precision V-Blocks


Used to clamp various work pieces. Made from hardened steel, precision ground in pairs. Four different depths of prism incisions V, all at 90°. Size 2" x 1 3/16" x 1 3/16" (50 x 30 x 30mm). The solid clamp and knurled knob ensure superb securing of the work piece.

NO 24 262     2 pieces




Edge Finder Set


Used for fast and accurate location of starting point of work pieces with respect to the machine spindle on milling machines. Size 15/64" x 15/64" x 2" (6 x 6 x 50 mm) and 15/64" x 3/16" x 3" (6 x 5 x 75mm). Comes in a wooden box.

NO 24 434
