Multiversatile equipment for delicate projects. Precise and quiet. With quick change chuck. Made in Europe.

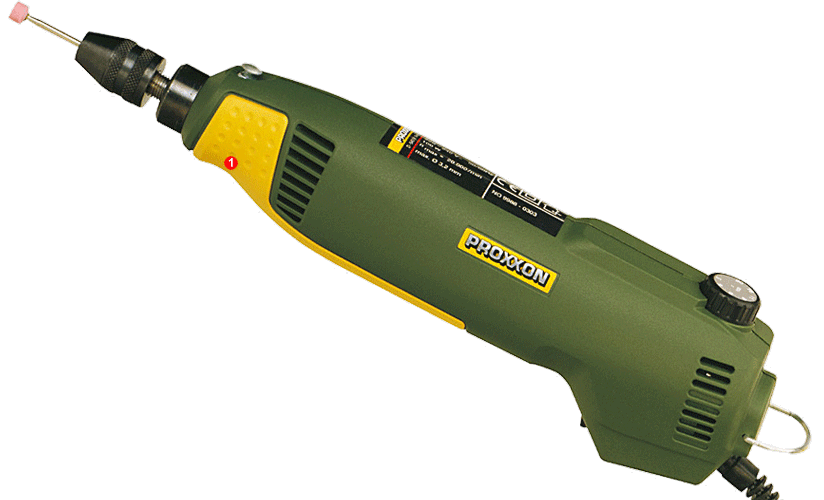

Precision drill/grinder FBS 240/E
Strength comes from quality!

For drilling, milling, grinding, polishing, cleaning, carving and engraving.




Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area.

The maximum speed of 22,000rpm is continuously variable down to 5,000rpm. The full wave electronic speed control results in virtually constant torque, even at lower speeds, in turn facilitating micro drilling, cleaning and polishing. The spindle runs in a precision ball bearing and is lifted with a lock button. The 20mm collar fits MICROMOT drill stands and vices. The machine is fitted with a special, balanced, low noise DC motor with high life expectancy. Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area. Complete with 43 quality inserts in a sturdy plastic case.

The heart of our MICROMOT precision tools for 230V: the direct current (DC) special motor.

Technical data:
230V. 5,000 - 22,000rpm. 100W. Length 200mm. Weight 450g. Insulated to class 2. With keyless chuck for shanks from 0.3 - 3.2mm.

NO 28 472

See us on YouTube!






Video FBS 240/E


Note:
The FBS 240/E may also be fitted with the optional MICROMOT steel collets.





Complete with 43 high-quality bits and cutters in a durable polypropylene case.



Suitable accessories:
Bits and cutters of industrial and dental quality




Video FBS 240/E


  1. Stable housing of glass-fibre reinforced POLYAMIDE with soft components in the finger grip area.



The heart of our MICROMOT precision tools for 230V!

A comparatively more expensive direct current (DC) special motor with permanent magnet technology.

In relation to its size, the permanent magnet technology makes it very powerful, quiet and long-lasting. Due to its very high efficiency, this motor requires considerably less power for the same power output from the socket outlet than other commonly used motors.

Of course, when utilizing these motors our first concern is to produce small, slender tools with high performance. The outstanding ratio of current consumption:power output also contributes significantly to energy saving, thereby also protecting our environment !
